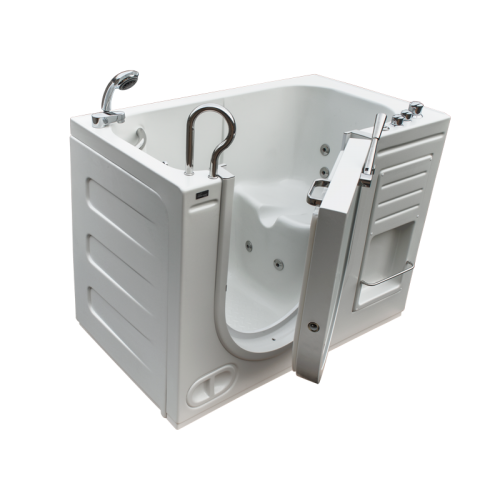

HY-04 Outward open w/faucet (51x29.5x42.5in)

HY-04 was Homeward Bath original “outward” opening door accessible tub and one of the first available to the general public.  The major decision that you are making while buying a walk-in tub is whether you need extra safety that is provided by an outward opening door system in emergency cases.  Apart from superb safety due to outward door opening mechanism our model offers extra solid stainless steel and tempered glass 24 ½” framed door and three safety grab bars.  The tub is sold inclusive with hand held shower.  Upgrade panels can be additionally ordered.   This product is available with 16 heated air jets and/or 10 water jets options

Outward open walk-in tub, size: 51x29.5x40H in

• Outward opening door providing extra safety in case of emergencies
• Hand-held shower with 5 foot hose attached and a faucet are included
• Extra solid stainless steel and tempered matte finish glass 24 ½” framed door
• Available with 8 whirlpool jets option
• Available with16 heated air jets option
• Two safety grab bars
• Accessory rack
• Towel bar
• Limited life time warranty on the door seal
• Surround with shower rod available
• Overflow protected
• 2” drain for faster draining
• Luxurious head rest pillow
• ¾ in entry pipe filler provides double speed tub filling
• ABS composite acrylic with fibre glass backing
• Free standing or built-in model
• 17” high (ADA compliant) molded seat
• Hand held shower and faucet included
• Convenient / easy to reach controls
• Easy installation (4-6 hrs)
• Available with left or right drain
• Limited life time warranty on the door seal
• Textured tub floor
• Upgrade panels available

TECHNICAL INFORMATION

Materials: acrylic composite
Drain capacity: 40 gallons per minute

PLUMBING REQUIRMENTS

• Unit is equipped with flexible, metal braided ½ inch water supply hose with ½ female threaded connectors
• Need to install hot and cold shutoffs with ½ male threaded nipples (not included)
• It is advised to have tub onsite before preparing drain location

ELECTRICAL INFORMATION FOR WHIRLPOOL PUMP (model HY-1104)

• 3/4 HP water pump with internal heater
• 12-2 wire with 110 volt, 20 amp GFCI breaker

ELECTRICAL INFORMATION FOR HEATED AIR PUMP (model HY-1204)

• Air jet motor with heater 110 volt
• Dedicated 12-2 wire with 110 volt, 15-20 amp GFCI breaker
