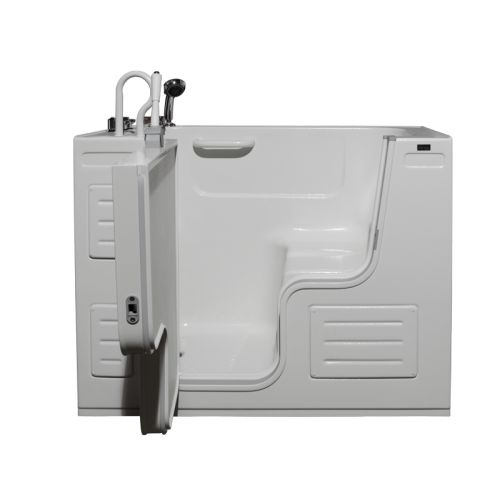

HY-41 Outward open w/faucet (51x27.5x41in)

HY-41 walkin tub’s wide outward opening door design and its extremely low threshold make it one of the easiest and safest accessible tubs available.  The major decision that you are making while buying a walk-in tub is whether you need extra safety that is provided by an outward opening door system in emergency cases.  Apart from superb safety due to outward door opening mechanism this model offers ideal design for transfer from wheel chair.  An impressive characteristic here is that the seat is positioned so that anyone can safely sit into and get out of this tub. The tub is sold inclusive with hand held shower. Upgrade panels can be additionally ordered.   Extra wide 32” door with dual locking mechanism and two safety grab bars are extra features making this model one of the best choices for handicapped and elderly people.

Avenue series easy transfer Walk-in tub, size 51x27x40H in

• Outward opening door providing extra safety in emergency cases
• Ideal for transfer from wheel chair
• Extra wide 32” door with dual locking mechanism
• ¾ in entry pipe filler provides double speed tub filling
• 2” drain for faster draining
• Two safety grab bars
• Hand-held shower with 5 foot hose attached and a faucet are included
• Automatic dual locking mechanism
• Front access panel
• Convenient / easy to reach controls
• Easy installation (4-6 hrs)
• Overflow protected
• Heated air jets option available (upgrade)
• Free standing or built in model
• 17” high (ADA’s compliant) molded seat
• Available in left or left hand models
• Limited life time warranty on the door seal
• Textured tub floor
• Upgrade panels available

TECHNICAL INFORMATION

Materials: ABS composite acrylic with fiber glass backing
Non Occupied Water Capacity: 55-65 gallons

PLUMBING REQUIRMENTS

• Unit is equipped with flexible, metal braided ½ inch water supply hose with ½ female threaded connectors
• Need to install hot and cold shutoffs with ½ male threaded nipples (not included)
• It is advised to have tub onsite before preparing drain location

Note:The flexible drain hose that is included with this unit is for installation into a floor drain only. Substituting the existing drain show for a different one will not void the warranty as long as there is no damage or evidence of misuse.

ELECTRICAL INFORMATION FOR HEATED AIR PUMP( model HY-1241)

• Air jet motor with heater 110 volt
• Dedicated 12-2 wire with 110 volt, 15-20 amp GFCI breaker
